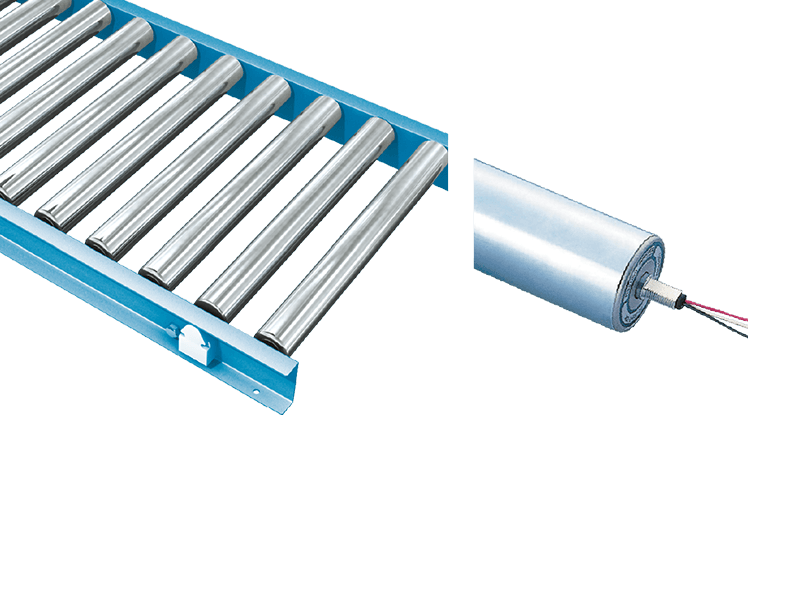

SST-57A (SST-60A) AC Motor Roller Conveyor
Cat:Electric Motor Roller Conveyor
Modelo SST-57A (SST-60A) Drive Mode ...
Advanced na istraktura, de-kalidad na pagganap, madaling gamitin, mataas na pagiging maaasahan at tibay.
Ang electric motor roller conveyor ay isang uri ng pinalakas na roller conveyor. Sa halip na isang tradisyunal na motor, gumagamit ito ng isang electric motor roller bilang mapagkukunan ng kuryente nito. Ang pagsasaayos na ito ay nakakatipid ng karagdagang puwang ng drive, na ginagawang madali itong mai -install. Malawakang ginagamit ito sa packaging at iba pang mga industriya, lalo na sa mga lugar na may limitadong espasyo. Ang boltahe ng AC ay karaniwang ginagamit para sa ilaw at flat cargo, habang ang DC boltahe, dahil sa pare -pareho at mas malaking metalikang kuwintas, higit na kaligtasan, at madaling pagsasaayos ng bilis, ay mas maraming nalalaman.

Modelo SST-57A (SST-60A) Drive Mode ...
| Modelo | SST-57A (SST-60A) |
| Drive Mode | Motor roller (solong aksyon) |
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4x12 (60.5 × 2.3 × 12 (Galvanizing) |
| Lapad ng roller | 200 ~ 1,000 |
| Roller pitch | 75 100 150 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 75 |
| Taas (H) | 100 (102) |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V (three-phase) AC380V (three-phase) |

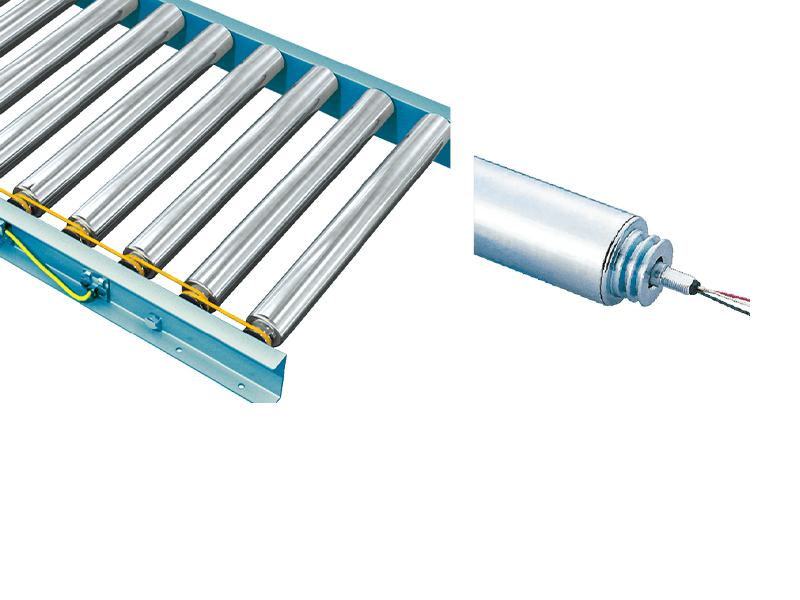

Modelo SST-57B (SST-60B) Drive Mode ...
| Modelo | SST-57B (SST-60B) |
| Drive Mode | Motor Roller (PU V Belt) |
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5x2.3x12) (Galvanizing) |
| Lapad ng roller | 300 ~ 1000 |
| Roller pitch | 75 100 150 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 90 |
| Taas (H) | 100 (102) |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V (three-phase) AC380V (three-phase) |

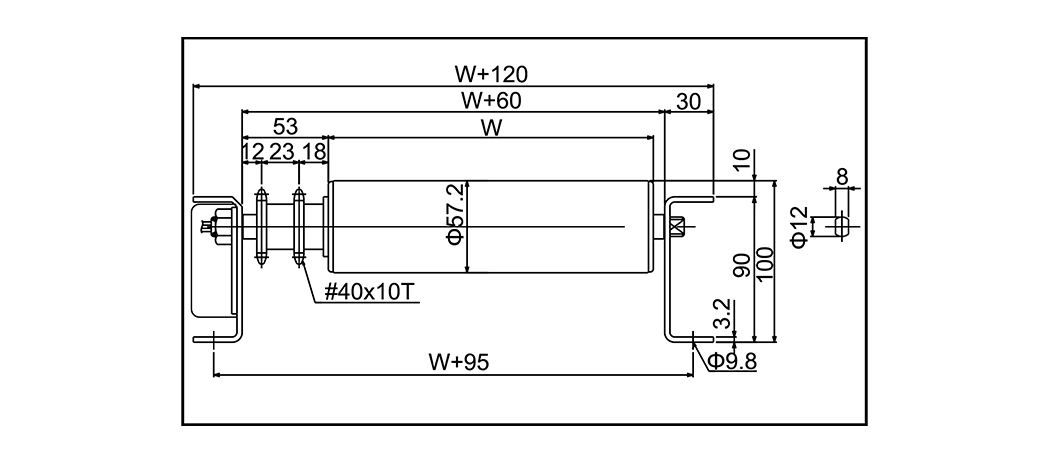

Modelo SST-57C (SST-60C) Drive Mode ...
| Modelo | SST-57C (SST-60C) |
| Drive Mode | Motor Roller R (#40 Sprocket) |
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 2.1 × 12 (60.5x2.3x12) (Galvanizing) |
| Lapad ng roller | 300 ~ 1000 |
| Roller pitch | 75 100 150 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 120 |
| Taas (H) | 100 (102) |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V {three-phase) AC380V (three-phase) |

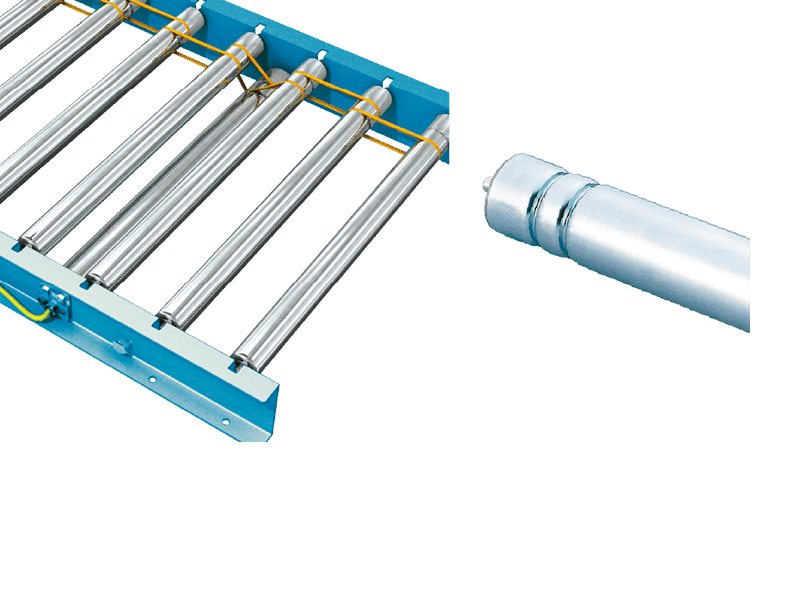

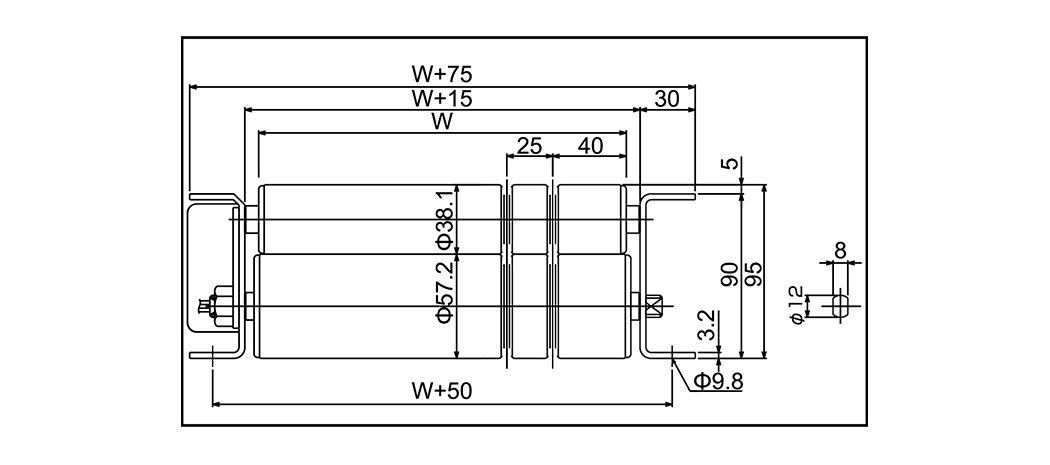

Modelo SST-38D Drive Mode Motor Roller (PU ...
| Modelo | SST-38D |
| Drive Mode | Motor Roller (PU V Belt) |
| Auxiliary Roller Diameter x kapal ng X shaft | 38.1 × 1.2 × 12 (Galvanizing) |
| Lapad ng roller | 300 ~ 800 |
| Roller pitch | 53 75 100 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 75 |
| Taas (H) | 95 |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V (three-phase) AC380V (three-phase) |

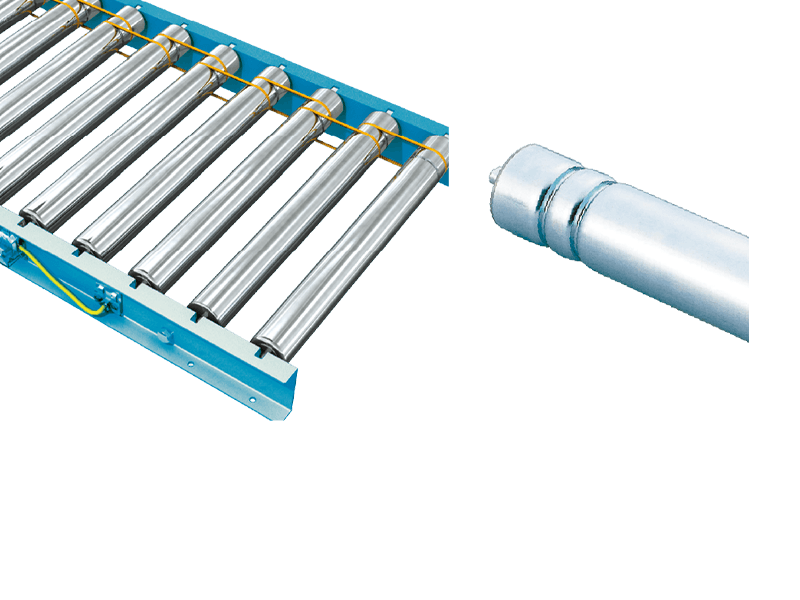

Modelo SST-57D (SST-60D) Drive Mode ...
| Modelo | SST-57D (SST-60D) |
| Drive Mode | Motor Roller (PU V Belt) |
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5x2.3x12) (Galvanizing) |
| Lapad ng roller | 300 ~ 1000 |
| Roller pitch | 75 100 150 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 75 |
| Taas (H) | 100 (102) |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V (three-phase) AC380V (three-phase) |

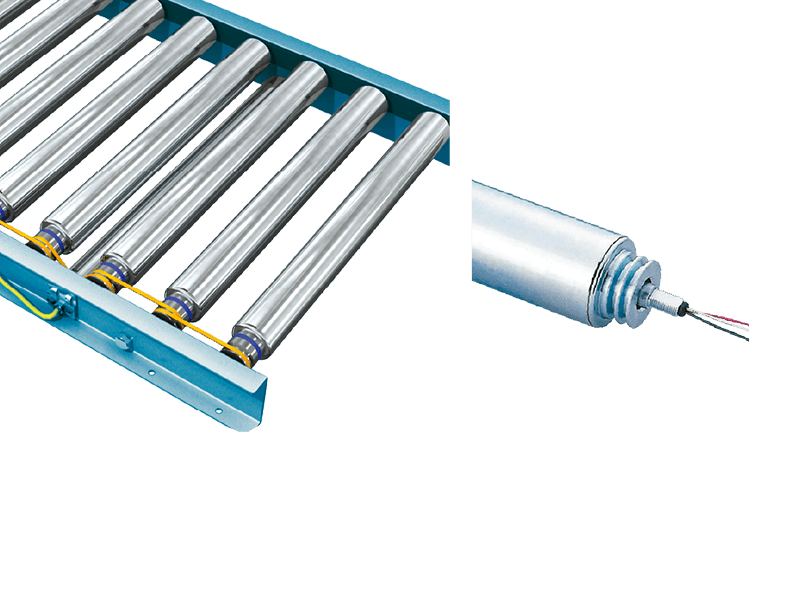

Modelo SST-57AQ (SST-60AQ) Drive Mode ...
| Modelo | SST-57AQ (SST-60AQ) |
| Drive Mode | Motor Roller (PUV Belt) |
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5 × 2.3x12) (Galvanizing) |
| Lapad ng roller | 300 ~ 1000 |
| Roller pitch | 75 100 150 |
| Laki ng frame | 90 × 30 × 3.2 |
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m |
| Lapad ng conveyor | W 120 |
| Taas (H) | 100、130 (102、130) |
| Kakayahan (kg/m) | |
| Bilis (m/min) | 50/60Hz 03 Uri : 2.5/2.8 04 Uri : 3.4/3.8 05 Uri : 4.7/5.2 10 Uri : 9.1/10.8 15 Uri : 12.4/14.8 20 Uri : 17.0/20.2 |
| Kapangyarihan ng motor | |
| Kapangyarihan | AC200V (three-phase) AC380V (three-phase) |

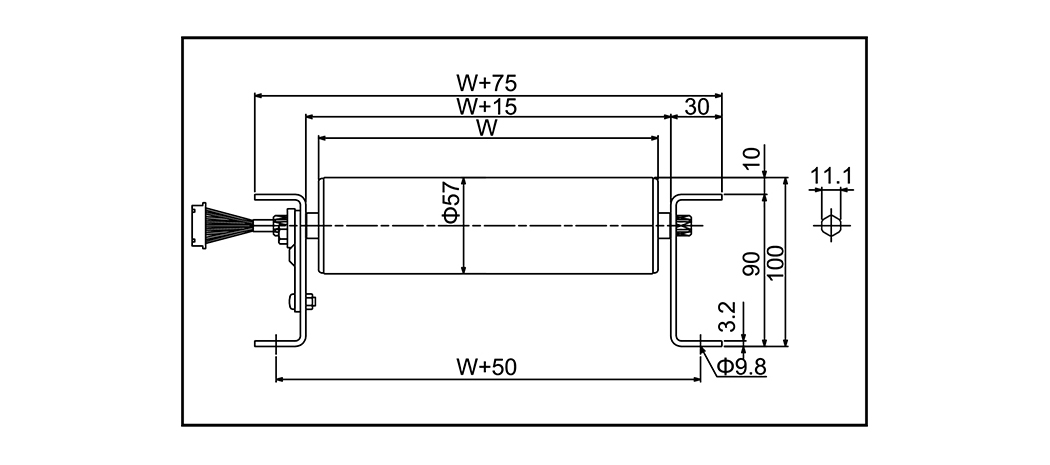

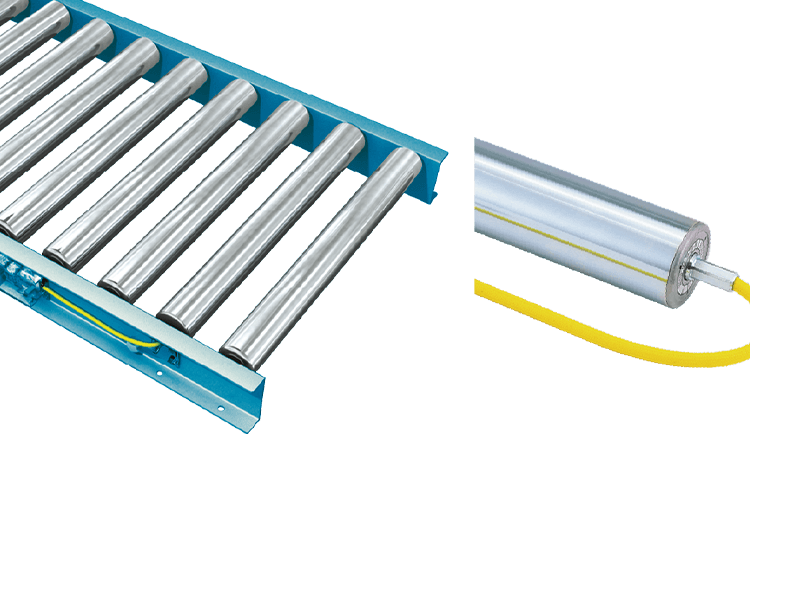

Modeloo DC-57A (DC-60A) Drive Mode ...
| Modeloo | DC-57A (DC-60A) | ||
| Drive Mode | Motor roller (solong aksyon) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5 × 2.3 × 12) (Galvanizing) | ||
| Lapad ng roller | 280 ~ 1000 | ||
| Roller pitch | 75 100 150 | ||
| Laki ng frame | 90 × 30 × 3.2 | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 75 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 6.0 7.3 9.9 21.6 | Max 23.5 28.5 39.1 85.9 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||

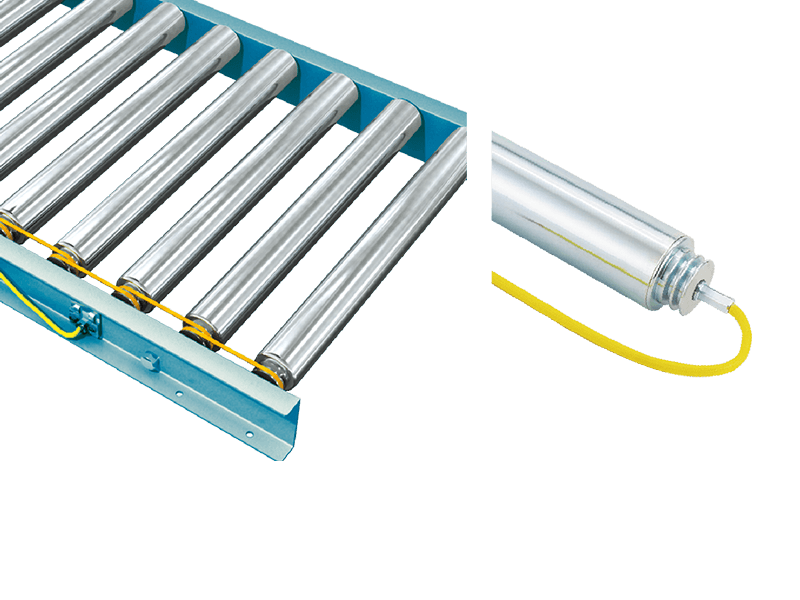

Modeloo DC-57B (DC-60B) Drive Mode ...
| Modeloo | DC-57B (DC-60B) | ||
| Drive Mode | Motor Roller (PU V Belt) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5 × 2.3 × 12) (Galvanizing) | ||
| Lapad ng roller | 300 ~ 1000 | ||
| Roller pitch | 75 100 150 | ||
| Laki ng frame | 90 × 30 × 3.2 | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 90 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 6.0 7.3 9.9 21.6 | Max 23.5 28.5 39.1 85.9 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||

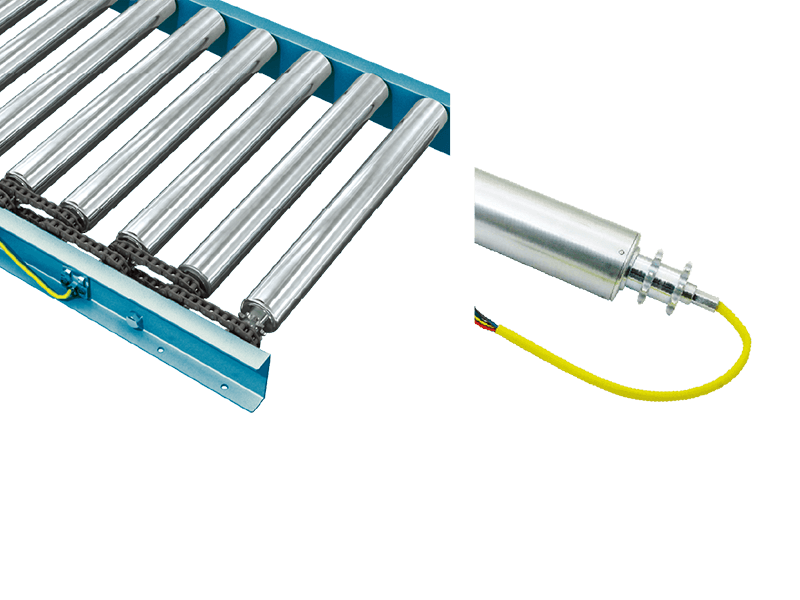

Modeloo DC-57C (DC-60C) Drive Mode ...
| Modeloo | DC-57C (DC-60C) | ||
| Drive Mode | Motor Roller R (#40 Sprocket) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2x2.1 × 12 (60.5 × 2.3 × 12) (Galvanizing) | ||
| Lapad ng roller | 300 ~ 1000 | ||
| Roller pitch | 75 100 150 | ||
| Laki ng frame | 90 × 30 × 3.2 | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 120 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 6.0 7.3 9.9 21.6 | Max 23.5 28.5 39.1 85.9 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||

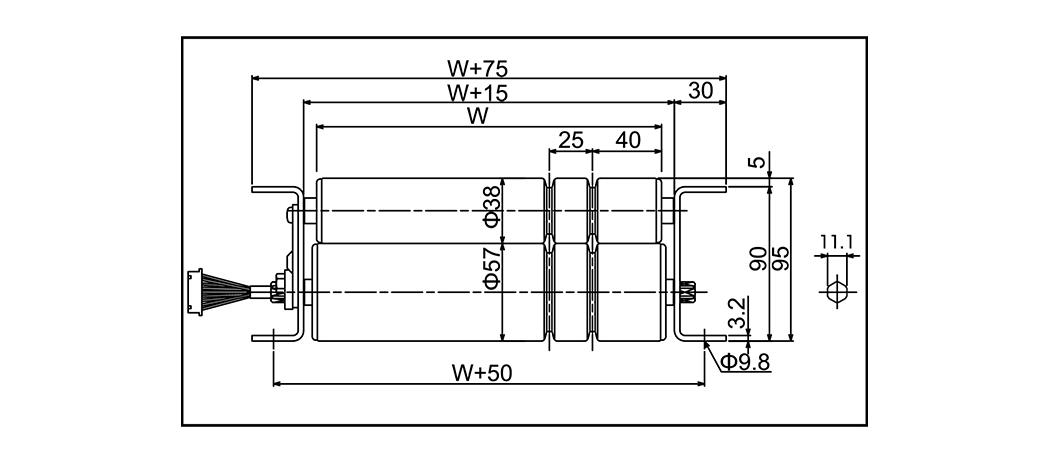

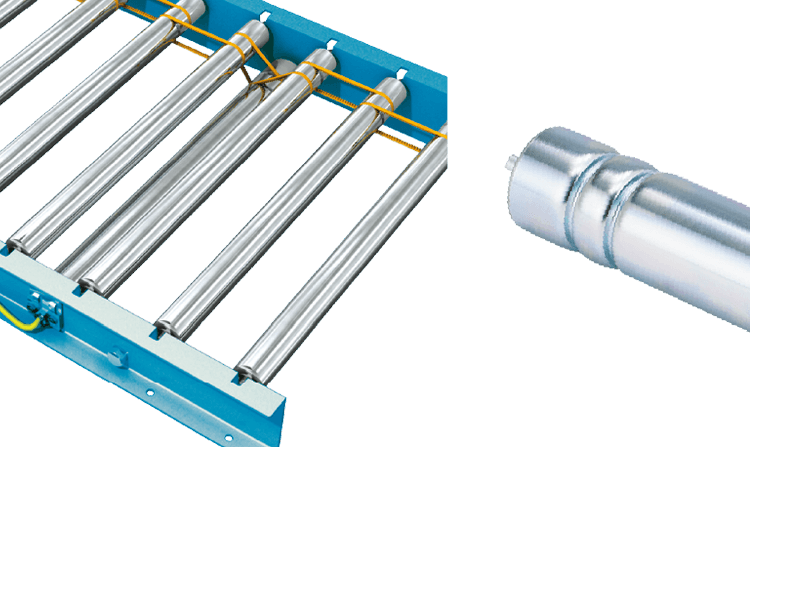

Modeloo DC-38D Drive Mode Motor Roller (PU ...
| Modeloo | DC-38D | ||
| Drive Mode | Motor Roller (PU V Belt) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 38 × 1.2 × 12 (Galvanizing) | ||
| Lapad ng roller | 300 ~ 800 | ||
| Roller pitch | 53 75 100 | ||
| Laki ng frame | 90 × 30 × 3.2 | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 75 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 5.8 7.0 9.6 21.2 | Max 31.4 38.3 52.4 115.0 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||

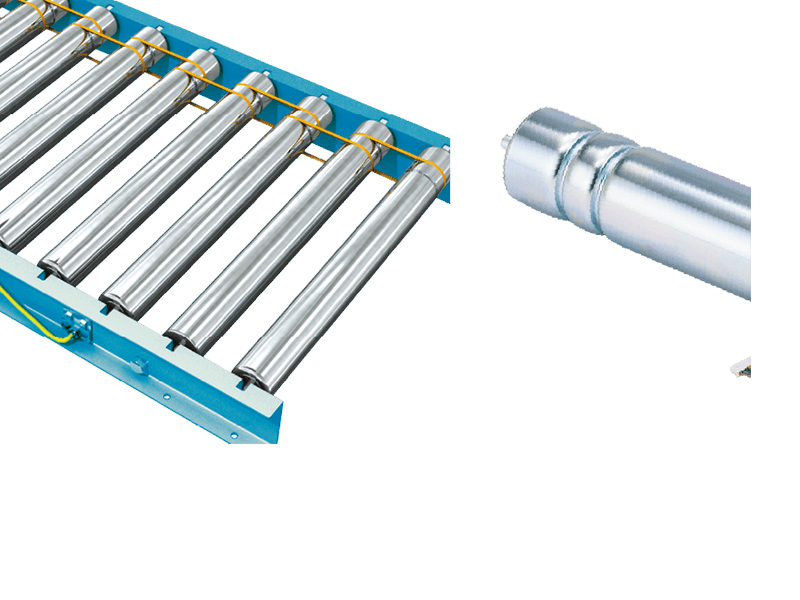

Modeloo DC-57D (DC-60D) Drive Mode ...
| Modeloo | DC-57D (DC-60D) | ||
| Drive Mode | Motor Roller (PUV Belt) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2 × 1.4 × 12 (60.5 × 2.3 × 12) (Galvanizing) | ||
| Lapad ng roller | 300 ~ 1000 | ||
| Roller pitch | 75 100 150 | ||
| Laki ng frame | 90 × 30 × 3.2 | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 75 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 5.8 7.0 9.6 21.2 | Max 31.4 38.3 52.4 115.0 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||

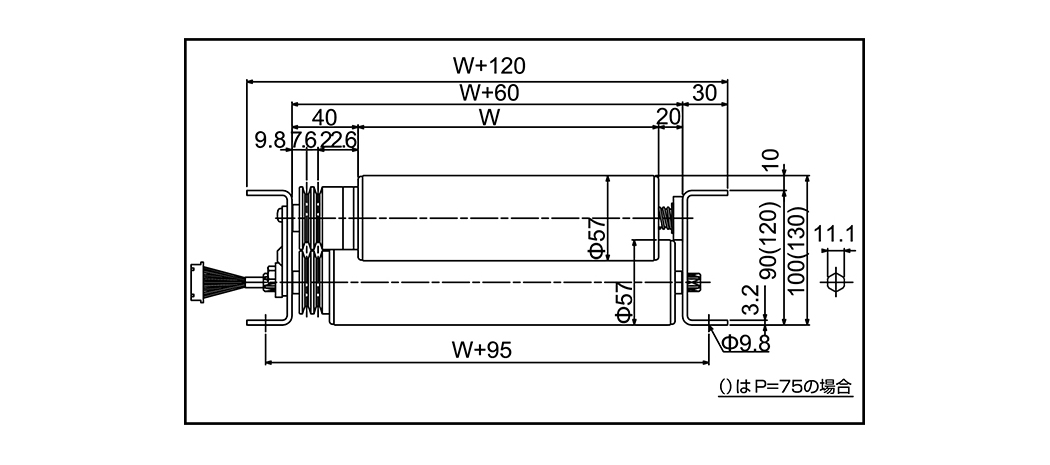

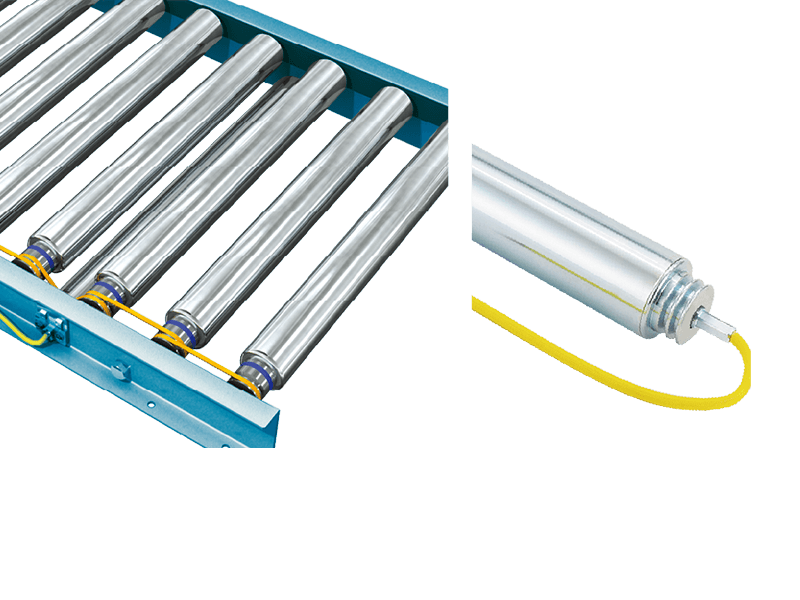

Modeloo DC-57AQ (DC-60AQ) Drive Mode ...
| Modeloo | DC-57AQ (DC-60AQ) | ||
| Drive Mode | Motor Roller (PU V Belt) | ||
| Auxiliary Roller Diameter x kapal ng X shaft | 57.2x1.4x12 (60.5 × 2.3 × 12) (Galvanizing) | ||
| Lapad ng roller | 300 ~ 1000 | ||
| Roller pitch | 75 100 150 | ||
| Laki ng frame | 90 × 30 × 3.2 (120 × 30 × 3.2) | ||
| Haba (l) | 1000 (1050) 1500 2000 (1950) 3000m | ||
| Lapad ng conveyor | W 120 | ||
| Bilis (m/min) | Model 25 Uri 30 uri 40 uri 95 Uri | Min 5.8 7.0 9.6 21.2 | Max 31.4 38.3 52.4 115.0 |
| Kapangyarihan ng motor | 35W | ||
| Kapangyarihan | DC24V | ||
